Water Medium Type Flange Gate Valve for Standard Applications

Name: Water Medium Type Flange Gate Valve for Standard Applications
Brand: JGPV
Price: 1 USD

Wholesale Water Medium Type Flange Gate Valve for Standard Applications from china suppliers

Brand Name : JGPV

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 100pcs per month

Delivery Time : 14 days

Packaging Details : Plywood box safety packing

Application : General

Certificate : ISO9001, ISO14001

Medium Type : Water, steam and oil etc.

Function： : Condensate drain

Connection : Screw connection

Mounting Type : Direct Mount

Standard Or Non-Standard : Standard

Flow way : Two way

Actuation : Manual, Electric, Pneumatic,Automatic

Sealing Performance : Sealing

Working Temperature : Normal Temperature And High Temperature

Pressure Application : Normal Pressure

Quality Warranty : 18 Months

Contact Now

Highlight: Flange gate valve

Product introduction:

Gate valve refers to a valve in which the closing element (gate) moves vertically along the centerline of the passage. Gate valves are mainly used for cutting off in pipelines. Gate valve is a widely used type of valve. Gate valves can only be used for fully open and fully closed blocking in pipelines, and cannot be used for adjustment or throttling.Cast steel is mainly used for controlling the flow rate, pressure, and temperature of pipelines in various industrial automation production. For example: electricity, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc.

Product technical parameters:

Nominal diameter (mm)		15-300
Nominal pressure (MPa)		1.6
Test pressure (MPa)	Strength (Water)	2.4
	Enclose (Water)	1.76
Main Components	Body	A216-WCB
	Bonnet	A216-WCB
	Stem	2Cr13
	Gasket	PTFE
	Packing	Soft graphite
Medium applicable		Water, steam and oil
Working temperature		-29℃～425℃
Connection way		Flange
Operational method		Hand wheel
Optional operation		Bevel gear, pneumatic and electric actuators

Product features:

1. Cast steel gate valve with low flow resistance.

2. Cast steel gate valve with less erosion of the sealing surface by the medium.

3. Cast steel gate valve with compact structure, opening and closing are more effortless.

4. The flow direction of the medium is not restricted, does not disturb flow, and does not reduce pressure.

5. As medium can flow toward either direction of the two sides, it is easy to be installed.

6. Short structure and manufacturing process and there are many materials available for high temperature and high pressure resistance.

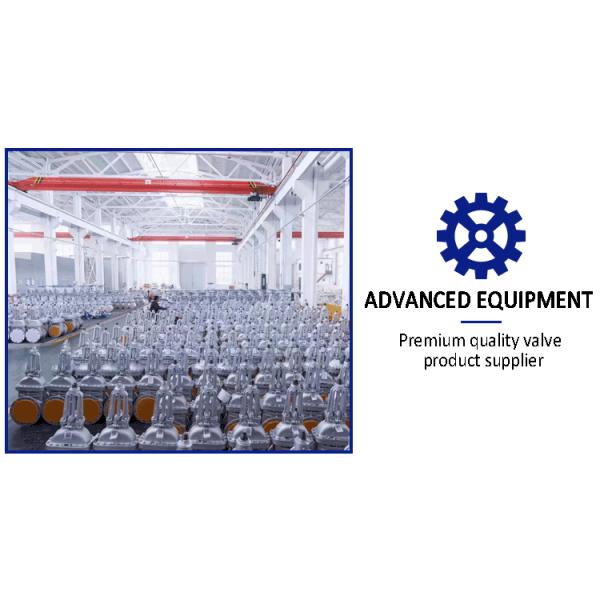

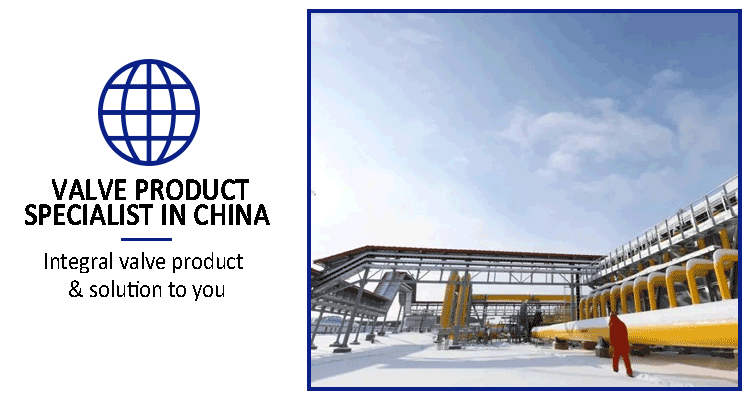

Our Advantages:
